Applications
Sample Type: soft,hard,brittle, fibrous
Application Field: engineering / electronics, building materials, agriculture, medicine, chemi- cal/synthetic materials, geology/metallurgy,environment/resource recovery, glass/ceramics.
Typical Samples:
plant material, cement clinker, concrete, compost, coatings and paint, charcoal, hair, catalyst, chemicals, metal, carbon fiber, paper, fiber products, cellulose, seeds, clay minerals, coke, coal, glass, waste electronic products, mineral, ore, limestone,gypsum, quartz, kaoin, bones, metal oxide, iron ore, ceramics, polymers, bentonite/bentonite, pigment, and so on.
Working Principle

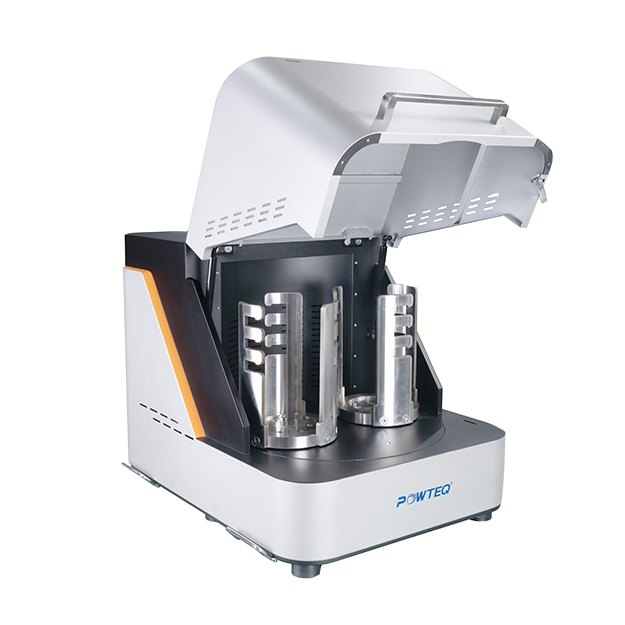

When the planetary ball mill starts, the motor drives the common sun wheel to move, while the grinding jars, which are located on the sun wheel, turning around its own axis. The direction of the movement of the sun wheel is opposite to that of the grinding jars in the ration 1:-2.The grinding balls in the grinding jars are subjected to superimposed rotational movement, the so-called Coriolis forces. Under this interaction, the grinding balls release high dynamic energies. The samples are constantly impacted by the grinding balls, and rapid crushed by the friction of the grinding jar's inner wall at the same time.
