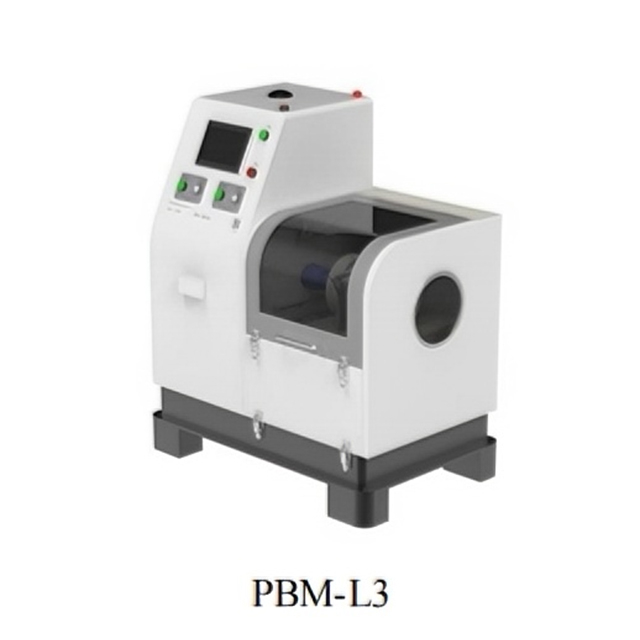

PBM-L3
Samy
| Quantity: | |
|---|---|

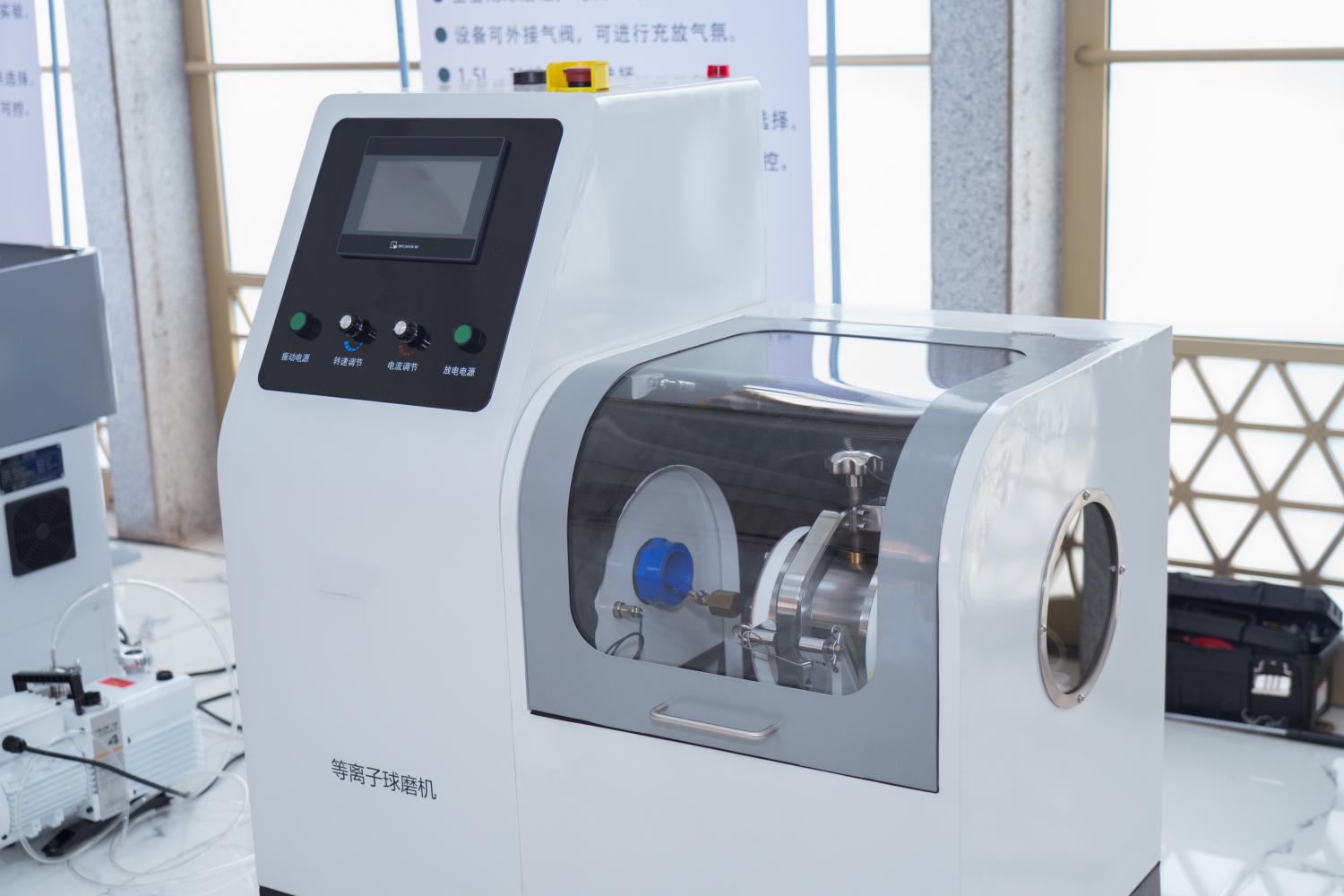

1. Introduction to Plasma Ball Milling
The plasma ball mill introduces cold-field discharge plasma into mechanical vibration ball milling, utilizing the synergistic effect of high-energy non-equilibrium plasma formed by near-atmospheric pressure gas in the milling jar and mechanical ball milling. Under the influence of non-thermal plasma within the sealed milling jar system, material molecules readily transform into atomic and excited states for recombination, promoting powder refinement, alloying, activation, chemical reactions, and accelerating in-situ gas-solid phase reactions. This significantly improves milling efficiency, substantially reduces milling contamination, and forms unique structures that significantly enhance material properties.
The complete technical solution for this equipment has been submitted for PCT international patents in the United States, Japan, and European member states, and has been sold to over 100 universities, research institutes, and enterprises nationwide, including 10 academician teams and over 100 research teams.
2. Application areas
1) Lithium-ion battery cathode and anode materials
2) Fuel cell catalysts
3) Hard alloy powders
4) Metal-based compounds
5) Ceramic materials
6) Hydrogen storage materials
7) Elemental metals
8) Electrocatalysts
9) 3D printing
10) Nanomaterials
11) Thermoelectric materials
Number | Name | Quantity | Remark |
1 | Ball mill main machine | 1 unit | |
2 | Grinding jar (1.5L) | 1 set | Material is stainless steel |
Observation panel for discharge tank (1.5L) | 1 piece | ||
Electrode rod (1.5L) | 3 roots | 1 ball mill jar, 2 spare parts | |
3 | cable | 1 item | |
4 | Equipment Instruction Manual | 1 copy | |
5 | Certificate of Conformity | 1 copy | |
6 | Packing list | 1 copy | |
7 | Grinding jar operation tools | 1 set |
Product Information
Dimensions | Length 930 * Width 570 * Height 1150 mm |
| Gravitational Acceleration | 8~10 g |
| Number of Tanks | 1 |
| Volume | 1.5L/3L |
| Operating Method | Vibratory ball milling |
| Sample Size for Ball Milling | 1-500 g |
| Discharge Method | Dielectric barrier discharge |
| Speed Control Method | Variable frequency speed control |
| Input Voltage | AC-380V |
| Rated Discharge Power | 2 kW |
| Motor Speed: | 900-1500 rpm |
| Plasma discharge frequency | 10-16 kHz |
| Feed particle size | ≤5 mm |
| Minimum discharge particle size (depending on material) | 100 nm |
| Noise level | <75 dB |
| IoT remote monitoring and control platform | |
Product Configuration
1) Standard Configuration
2) Optional configuration
Number | Product Name | Model, Specifications | unit | Quantity required | Choose |
1 | electrode rod | 1.5L, polytetrafluoroethylene | piece | □
| |
2 | electrode rod | 3L, polytetrafluoroethylene | piece | □
| |
3 | Grinding jar | 1.5L, cemented carbide | set | □
| |
4 | Grinding jar | 3L, Stainless Steel | set | □
| |
5 | Grinding jar | 3L, cemented carbide | set | □
| |
6 | Discharge tank observation panel | 1.5L
| piece | □
| |
7 | Discharge tank observation panel | 3L
| piece | □
| |
8 | Plastic King Cover | 1.5L | pair | □
| |
9 | Plastic King Cover | 3L
| pair | □
| |
10 | Ceramic cover plate | 1.5L
| pair | □
| |
11 | Ceramic cover plate | 3L
| pair | □
| |
12 | vacuum pump | unit | □
| ||
13 | Tungest carbide Alloy ball | 6/8/10
| kg | □
| |
14 | Stainless steel ball | 6/8/10
| kg | □
|
Note: Not all optional accessories with the same product name but different specifications are listed. Please consult our sales staff for more options.
Changsha Samy Instrument Equipment Co., Ltd.
Changsha Samy Instrument Equipment Co., Ltd. has been registered since 2010. It is a professional manufacturer of centrifuges and ball mills, a high-tech enterprise integrating scientific research and design, production, sales and after-sales service. It has developed through technological innovation and become a competitive service provider in the market. It offers reasonable solutions and equipment for various scientific research institutions, universities, chemical inspection centers, blood banks, hospitals, electronics, pharmaceuticals, environmental protection, enterprise laboratories, etc.
The company is committed to cultivating the core competitiveness of "innovation, service, providing ideal equipment for customers and creating more value", and striving to build a first-class corporate image. Currently, our company's products sell well in the domestic market and are exported to countries and regions around the world.
Q:What's the plasma ball mill used for?
A: Samy plasma mill for laboratory powder preparation and sample grinding
Q:Do you have MOQ request?
A: we are accept MOQ as 1 pc.
Q:What's kind of package for the ball mill?
A:We usually use wooden boxes as packaging.
Q:How many days will be delivery?
A:The common style like 0.4L,1L,2L,4L, we have enough stock in warehouse,the delivery time around 3-10 days after we get the payment.
